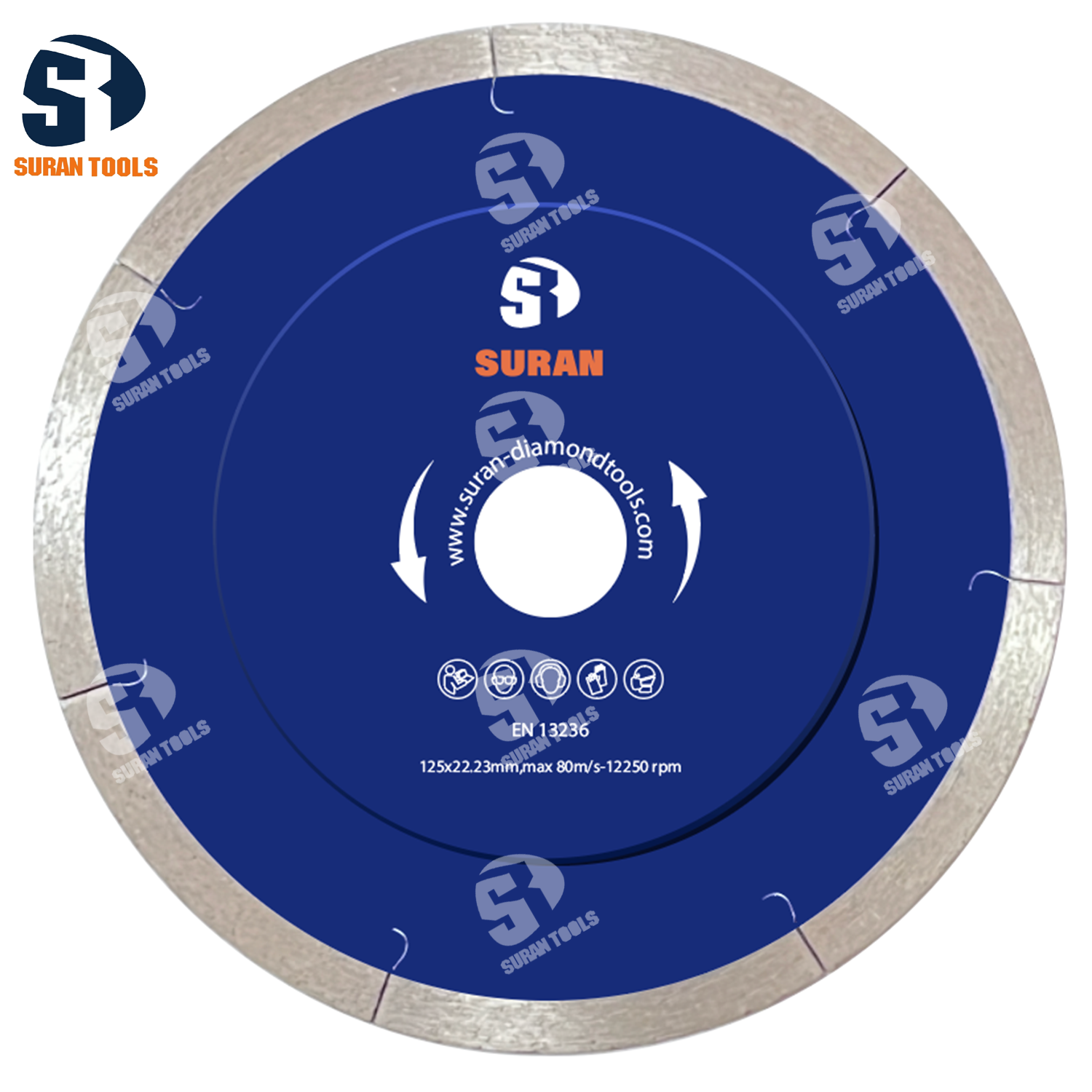

HOT PRESSED DIAMOND BLADE
SURAN
0206
| Item No. | Outer Diameter | Hole Diameter | Segment Dimension | |
| inch | mm | mm | ||
| 0206105 | 4" | 105 | 16/20/22.23 | 1.2x10 |
| 0206110 | 4.3" | 110 | 16/20/22.23 | 1.2x10 |
| 0206115 | 4.5" | 115 | 20/22.23 | 1.2x10 |
| 0206125 | 5" | 125 | 20/22.23 | 1.2x10 |
| 0206150 | 6" | 150 | 20/22.23 | 1.6x10 |
| 0206180 | 7" | 180 | 22.23/25.4/30 | 1.6x10 |
| 0206200 | 8" | 200 | 22.23/25.4/30 | 1.8x10 |
| 0206230 | 9" | 230 | 22.23/25.4/30/50 | 1.8x10 |
| 0206250 | 10" | 250 | 22.23/25.4/30/50 | 1.8x10 |
| 0206300 | 12" | 300 | 22.23/25.4/30/50 | 2.2x10 |
| 0206350 | 14" | 350 | 22.23/25.4/30/50 | 2.4x10 |
| 0206400 | 16" | 400 | 22.23/25.4/30/50 | 2.8x10 |
| Item No. | Outer Diameter | Hole Diameter | Segment Dimension | |
| inch | mm | mm | ||
| 0206105 | 4" | 105 | 16/20/22.23 | 1.2x10 |
| 0206110 | 4.3" | 110 | 16/20/22.23 | 1.2x10 |
| 0206115 | 4.5" | 115 | 20/22.23 | 1.2x10 |
| 0206125 | 5" | 125 | 20/22.23 | 1.2x10 |
| 0206150 | 6" | 150 | 20/22.23 | 1.6x10 |
| 0206180 | 7" | 180 | 22.23/25.4/30 | 1.6x10 |
| 0206200 | 8" | 200 | 22.23/25.4/30 | 1.8x10 |
| 0206230 | 9" | 230 | 22.23/25.4/30/50 | 1.8x10 |
| 0206250 | 10" | 250 | 22.23/25.4/30/50 | 1.8x10 |
| 0206300 | 12" | 300 | 22.23/25.4/30/50 | 2.2x10 |
| 0206350 | 14" | 350 | 22.23/25.4/30/50 | 2.4x10 |
| 0206400 | 16" | 400 | 22.23/25.4/30/50 | 2.8x10 |
